75 Ohm Low Loss Coaxial Cable , Exterior Grade Coaxial Cable To Ethernet

Name: 75 Ohm Low Loss Coaxial Cable Exterior Grade Coaxial Cable To Ethernet
Brand: OEM /BLG
Price: 1 USD

China 75 Ohm Low Loss Coaxial Cable , Exterior Grade Coaxial Cable To Ethernet wholesale

Brand Name : OEM /BLG

Model Number : RG59 Coaxial Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 10000 Meters

Price : US$

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2 containers

Delivery Time : 7~10 working days

Packaging Details : 100m/roll, 305n/roll

Inner Conductor : 0.81 Bare Copper / CCS

Dielectric : 3.66mm FPE

Out Conductor : Al Foil +70%, 90%, 95% Braid

Braid Material : Al-Mg, CCA, BC, TC

Out Jacket : 5.80-6.10mm PVC/PE

Application : TV & CCTV

Contact Now

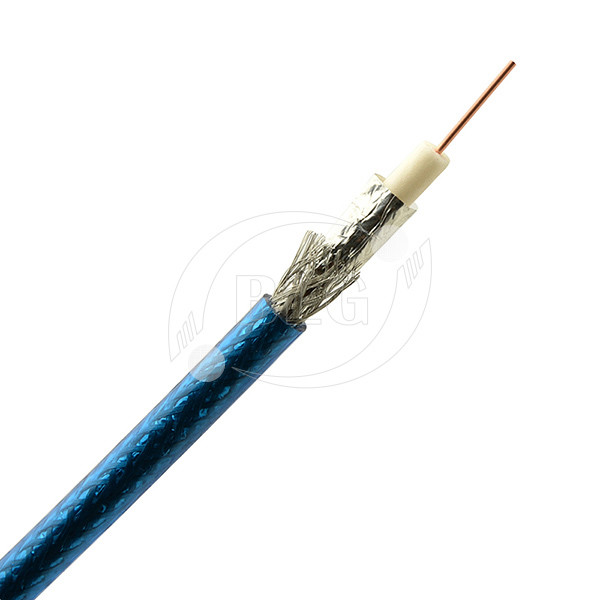

75 Ohm Low Loss RG59 Television Coaxial Cable CU /

CCS Conductor

coaxial cable:

Inner Conductor (Core) 0.81mm Copper Clad Steel 21-23%(15%)/ BC

Insulator (Dielectric) 3.66 mm Gas Injected FPE / Foam PE

Foil Aluminium Tape (100 % Coverage)

Shield Al&Mg braid (60 % Coverage)

Outer Sheath (Jacket) 6.1mm Blue

Electrical Characteristics:

Impedance 75ohm

Maximum Operating Frequency 3 GHz

Velocity of Signal Propagation 83 % - 85%

Return Loss VHF/UHF 20/18 dB

DC Resistance inner conductor < 104.7 ohm/km

DC Resistance Outer conductor< 47.3 ohm/km

Capacitance50 + 3 nF/KM

Structural return Loss

5 MHz – 1000M Hz > 20dB

950MHz – 2250M Hz > 15dB

2250MHz – 3000M Hz > 10dB

Operating Temperature Range- 20 º C to + 75 º C

Minimum Bending Radius60 mm

ELECTRICAL PROPERTIES:

IMPEDANCE: 75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION: 85.0% NOMINAL

ATTENUATION @ 68°F (20°C):

@ Frequency MHz	dB/100 ft. (MAX.)	dB/100 meters (MAX.)
5 MHz	0.58 dB	2.80 dB
55 MHz	1.60 dB	5.25 dB
83 MHz	1.95 dB	6.40 dB
187 MHz	2.85 dB	9.35 dB
211 MHz	3.05 dB	10.00 dB
250 MHz	3.30 dB	10.82 dB
300 MHz	3.55 dB	11.64 dB
350 MHz	3.85 dB	12.63 dB
400 MHz	4.15 dB	13.61 dB
450 MHz	4.40 dB	14.43 dB
500 MHz	4.66 dB	15.29 dB
550 MHz	4.90 dB	16.08 dB
600 MHz	5.10 dB	16.73 dB
750 MHz	5.65 dB	18.54 dB
865 MHz	6.10 dB	20.01 dB
1000 MHz	6.55 dB

75 Ohm Low Loss Coaxial Cable , Exterior Grade Coaxial Cable To Ethernet

Product Tags:

low loss coaxial cable

coaxial audio cable

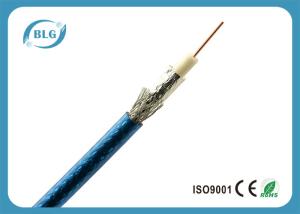

75 Ohm Low Loss Coaxial Cable , Exterior Grade Coaxial Cable To Ethernet Images
