Video Low Loss 75 Ohm Coax To Rj45 , Polyvinyl Chloride 100 Feet Coaxial Cable

Name: Video Low Loss 75 Ohm Coax To Rj45 Polyvinyl Chloride 100 Feet Coaxial Cable
Brand: BLG/OEM/ODM
Price: 1 USD

China Video Low Loss 75 Ohm Coax To Rj45 , Polyvinyl Chloride 100 Feet Coaxial Cable wholesale

Brand Name : BLG/OEM/ODM

Model Number : RG59 Caoxial Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 5000meter

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 containers/week

Delivery Time : 7~15days

Packaging Details : Custom length, packing by cross straps and plastic film .Outer packing by woven bag or carton box.

Conductor Material : Solid bare copper/CCS

Insulation : Solid PE/Foam PE

Braids : Foil+48P/64P/80P/96P/112P/128P/144P/160P

Jacket Material : polyvinyl chloride / FR-PVC

Number of conductor : 1

Length : 100m/200m/300m/305m

Application : Monitoring system/Radio/Broadcasting/Video

Color : As customer's requests

Contact Now

75 Ohm Leaky RF RG59 Flexible Coaxial Cable CCS/ CU Conductor Black Audio Video

specfication:

1)0.81mmBC(or CCS)+ 3.66mmFoamed PE + A/P(bonded)+60% AL Braiding +6.1mm Clear PVC Jacket

2)OEM order is welcome

Video Low Loss 75 Ohm Coax To Rj45 , Polyvinyl Chloride 100 Feet Coaxial Cable

Reference standard:RG59 coaxial cable

Type of coaxial cable: RG-59, RoHS compliance
Main Electrical properties:
Characteristic impedance		75±3Ohm
Rated capacitance		53±2 pf/m
Velocity		82%
Delay		3.92ns/m
Operating frequency		1~2000MHz
Attenuation at typical frequencies:(dB/ m)
550MHz	750		800MHz	1000MHz
0.2020	0.2380		0.2532	0.2780
VSWR 50~1000MHz		1.25 Max.

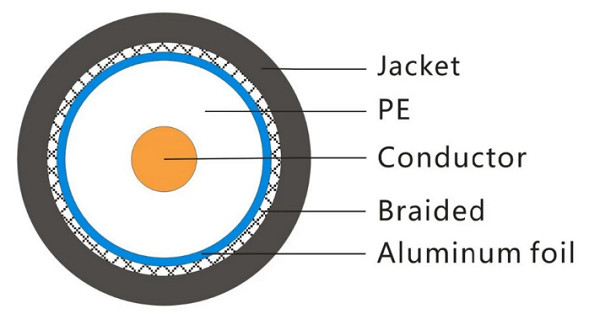

Mechanical Construction:
Inner conductor: CCS		0.81±0.01mm
Dielectric:FPE		3.70±0.10mm
Outer conductor: AP+AL		16*4/0.12±0.01mm
Jacket :PVC Black		6.10±0.15mm
Engineering data:
Maximum Pull Tension		38 Ibs
Minimum bending radius		63mm
Operating temperature		-20~+70°C
Reel Length		300-500m
jacket-Marking		-

Video Low Loss 75 Ohm Coax To Rj45 , Polyvinyl Chloride 100 Feet Coaxial Cable

Application:
Drop cable for CATV and MATV distribution

Features:
1) High physical foaming
2) Low loss in attenuation
3) Options:
a) Dual
b) Quad shield
c) Messenger
d) Quad shield and messenger

Attenuation at typical frequencies

mhz	≤db/100m
1	0.55
20	2.49
150	7.13
200	8.32
400	12.2
900	19.2
