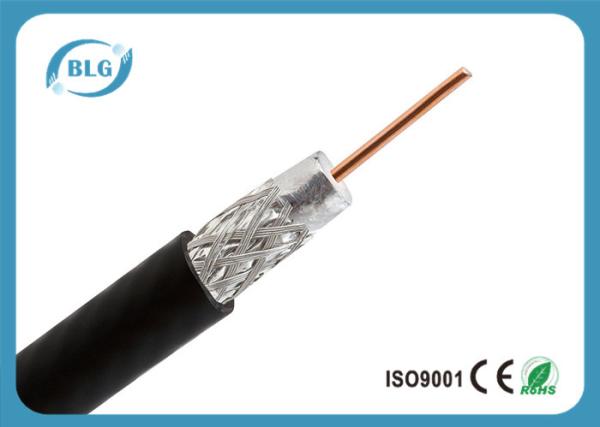

HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor

Name: HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor
Brand: BLG / OEM / ODM
Price: 1 USD

China HDTV Camera Black Satellite Coax Cable With Aluminum Tape Outer Conductor wholesale

Brand Name : BLG / OEM / ODM

Model Number : COAXIAL CABLE

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 10 - 15 Work Days

Packaging Details : 100M / 200M Per Roll or 300M Per Wooden Spool

Inner Conductor : Copper Clad Steel or Bare Copper

Insulation Layer : Foam Polyethylene

Outer Conductor : Aluminum Tape and Braiding

Jacket : Polyvinyl Chloride

Contact Now

Digital Flexible Coaxial Cable 75 Ohm RG6 CU / CCS For HDTV Camera Cable

Application:

Digital HDTV Video Links. Fixed Installation.

Center Conductor:

Bare Copper

18AWG

Nominal Diameter 1 x 1.02mm

Dielectric:

Skin Foam Polyethylene

Nominal Diameter: 4.6mm

Shield:

1^st Shield: Al Foil 100% Coverage

2^nd Shield: TC / Al - Mg Braid 95% Coverage

Jacket:

Flexible PVC / LSZH Compound

Nominal Diameter of Cable: 6.93mm

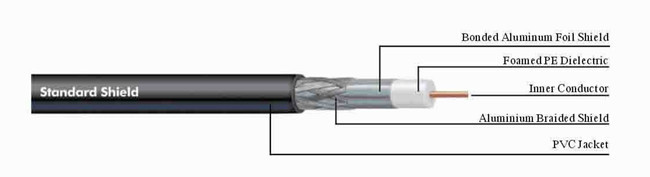

Cable Construction

	Material	Diameter
Inner Conductor	Copper Clad Steel and Bare Copper	1.02mm
Insulation Layer	Foam Polyethylene (FPE)	4.57mm
Outer Conductor	Single - sided Aluminum Tape and Tinned Copper Wire or Aluminum Magnesium Alloy Braiding	5.20mm
Jacket	Polyvinyl Chloride (PVC)	6.93mm

Electrical Properties and Mechanical Properties

Characteristic impedance		75 ohm
Rated capacitance		53.5 pf/m
Velocity of propagation		81%
Operating frequency		1 ~ 2000 MHz
Operating temperature		- 40°C ~ + 85°C
Minimum bending radius		70 mm
VSWR		1 ~ 1000 MHz ≤ 1.15
		1 ~ 2000 MHz ≤ 1.20
Attenuation at typical frequencies
MHz	≤ db / 100m	MHz	≤ db / 100m
1	0.86	200	12.9
20	3.92	400	18.5
150	11	900	28.7

Packages:

* 100M / Roll, 4 Rolls / Carton

* 200M / Roll, 2 Rolls / Carton

* 300M / Wooden Reel, 1 Reel / Carton

* As Customer’s Requirements
