Double Shielded Green Cat6a Lan Cable OFC 23AWG Conductor 305m Per Roll

Name: Double Shielded Green Cat6a Lan Cable OFC 23AWG Conductor 305m Per Roll
Brand: BLG/OEM/ODM
Price: 1 USD

China Double Shielded Green Cat6a Lan Cable OFC 23AWG Conductor 305m Per Roll wholesale

Brand Name : BLG/OEM/ODM

Model Number : CAT6A LAN Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 50 rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2 container /week

Delivery Time : 7~15days

Packaging Details : 305m/roll/box,2boxes/carton

Item : CAT6A F/FTP

Conductor Material : Bare Copper

Conductor Diameter : 23AWG/1*0.57mm

Insulation : HDPE

Shielding : Al Foil Whole Shielded

Drain Wire : CCS

Jacket : PVC/LSZH

Contact Now

Double Shielded Cat6 Ethernet Lan Cable OFC 23AWG

305m Per Roll

Cable Data

10GBASE-TEthernet, 1000BASE-Tx

Conductor: solid bare copper

AWG: 23

Conduction Diameter: 0.583+-0.02

Insulation: Foam-skin PE

Insulation average thickness: 0.419mm

Jacket:PVC/LSZH

Sheath average thickness: 0.05mm

Sheath diameter: 7.4+/-0.3mm

Elongation: Min. 100%

Tensiles strength: Min. 1.407 kg/mm2

Aging at 100 degree for 168Hrs: Min. elongation retention: 50%;

Min. tensile strength retention: 75%

Rid cord: Yes

Core color: Blue/White-Blue

Orange/White-orange

Green/White-Green

Brown/White-Brown

Standard Compliances

All proposed category 7 requirements

as per ANS/TIA/EIA, ISO/IEC, and CENELEC EN Standards.

ANSI/TIA/EIA 568-B.2-10,

Draft ISO/IEC/11801 CLASS F, 2nd Edition CENELEC EN 50288-4-2

Flame Retardancy is venrified according to IEC 60332-1-2

Application

10GBASE-TEthernet, 1000BASE-Tx

Gigabit Ethernet, 10BASE-T,

100BASE-T fast Ethernet(IEEE802.3), 100VG-AnyLAN(IEEE802.12)

155/622 Mbps ATM, 550

MNz Broadband Video, Voice, T1, ISDN

Electrical characteristics

Frequency	Impedance	RL	Attenuation	NEXT
Mhz	ohm	≥dB	≤dB/100m	≥dB/100m
4	100±15	23	3.7	65.3
10	100±15	25	5.9	59.3
16	100±15	25	7.5	56
20	100±15	25	8.4	54.8
25	100±15	25.3	9.5	53.3
100	100±15	20.1	19.8	44
200	100±18	18	29	40
250	100±18	17.3	32.8	38.3
*300	100±22	16.8	36.4	37.1
*500	100±22	15.2	48.9	33.8
*600	100±15	14.7	50.2	60.5

Double Shielded Green Cat6a Lan Cable OFC 23AWG Conductor 305m Per Roll

Product Tags:

cat6a ethernet cable

category 6a cable

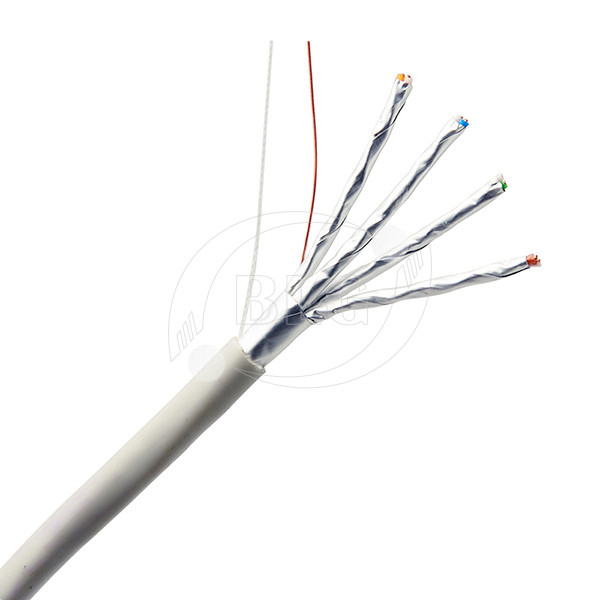

Double Shielded Green Cat6a Lan Cable OFC 23AWG Conductor 305m Per Roll Images
