Certificated With CE ROHS Cat 6a 23AWG Support 10G
Network Cable for Computer
The cable has been designed to exceed the ISO/IEC TIA and CENELEC for
Category 6A/ Augmented Category 6 component requirements. This delivers Class
EA/ Augmented Category 6 link performance over distances of up 90 metres which
supports the applications including 10GBASE-T 10 Gigabit Ethernet.

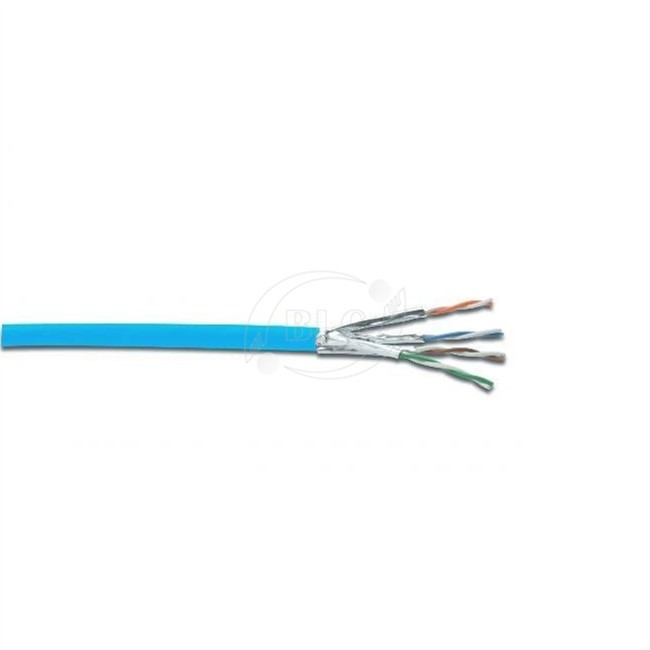

Each cable consists of 4 pairs individually wrapped in a covering of high quality
strong aluminium/polyester foil tape providing an individual screen for each pair. These
sub units are then cabled together with the pairs set to different lay lengths to ensure
optimum performance.
Category 6A cables are jacketed in an Ice Blue low smoke zero halogen (LSOH)
compound compliant with flame retardant standards as defined in IEC 60332-1 and

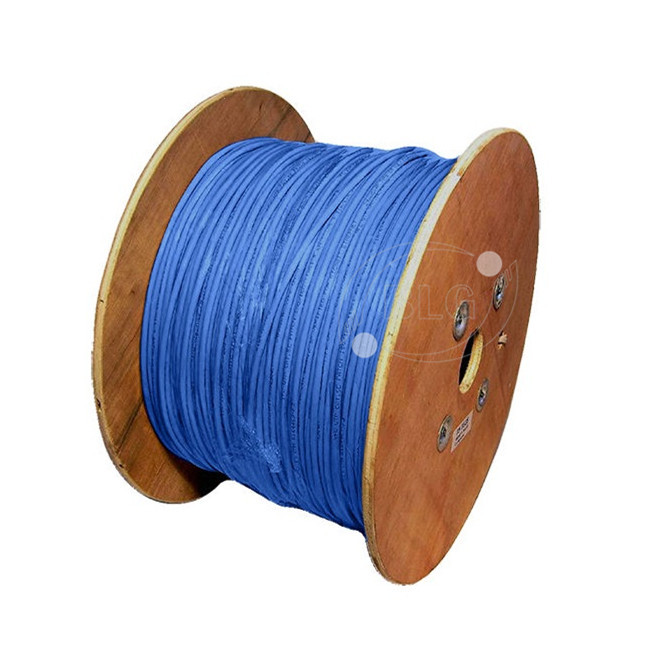

smoke emission standards IEC61034. Supplied on 305 metre plywood drums or in a
305 metre box each cable has a print legend identifying the specification part code and
sequential metre marking which counts down from 500 or 305 metres to 1 metre
respectively.
Features
• Specified to 500MHz
• Category 6A compliant
• Suitable for 10GBASE-T 10 Gigabit Ethernet Applications
• Individual foil screen
• Compact but robust design
• Low Smoke Zero Halogen Outer Sheath
• Supports Power Over Ethernet (POE) Plus
| Part No. | Name | Conductor(mm) |
| BG602310 | U/FTP CAT6A | Φ0.565 BC |
| Core Dimension(mm) | Nom O.D.(mm) | Drain wire:0.4TC*2 |
| PEF Φ1.3 | Φ7.4 | Flame retardant Blue LSZH/ normal PVC
|
