Dual Layer Jacket Cat6 LAN Cable Outdoor FTP Al Foil Shielded PVC PE Material

Name: Dual Layer Jacket Cat6 LAN Cable Outdoor FTP Al Foil Shielded PVC PE Material
Brand: BLG / OEM / ODM
Price: 1 USD

China Dual Layer Jacket Cat6 LAN Cable Outdoor FTP Al Foil Shielded PVC PE Material wholesale

Brand Name : BLG / OEM / ODM

Model Number : CAT6 LAN CABLE

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Item : FTP Cat6 Cable

Type : Outdoor

Conductor : CU / CCA

Filler : Cross Separator

Shield : PET + Al Foil

Jacket : PVC + PE

Contact Now

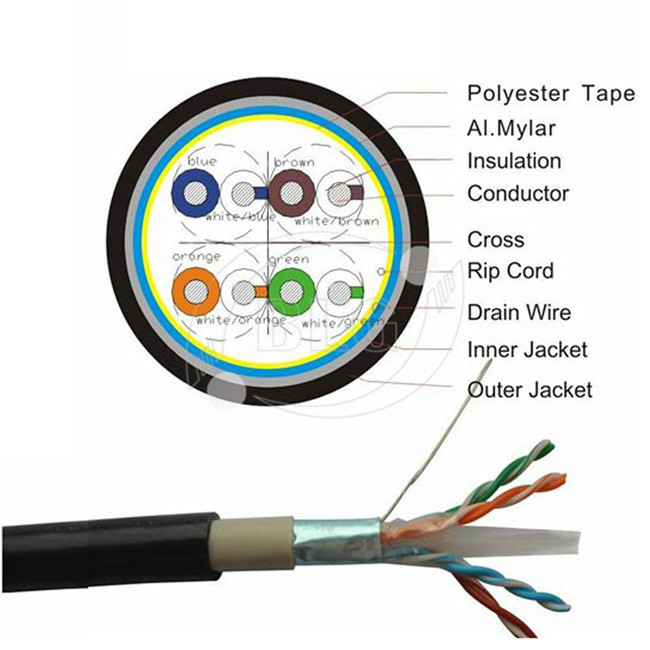

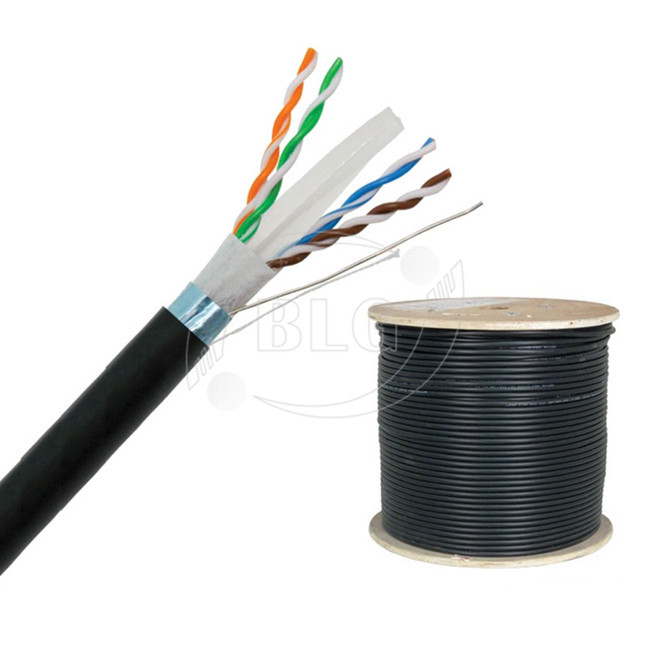

Dual Layer Jacket Cat6 LAN Cable Outdoor FTP Al Foil Shielded PVC + PE

Application Structured Cabling for Computer Networks Such as Ethernet over Twisted Pair.
CAT6 Cable Support 100 / 1000, 1GB Ethernet.
BLG UTP / FTP / STP / SFTP Cat6 Outdoor will Support Ethernet, and Gigabit Ethernet. It Can Completely Backwards Compatible .

Industry Standards:

Rated Temperature: 60°C, 75°C, 90°C
RoHS Complied PVC or PE or LSZH Jacket
Complies to ANSI / TIA-568-C.2, ISO / IEC 11801
Installation Temperature: -30°C ~ +50°C
Minimum Bending Radius: 8D

Conductor Size	23AWG ( 0.57mm )	Outer Jacket Diameter	6.8mm + / - 0.01mm
Conductor Material	Full Copper	DC Resistance ( MAX )	7.4 Ω / 100m
Number of Conductors	4 Pairs Twisted	DC Resistance Imbalance	2.50%
PVC Jacket Color	Customized	Working Capacitance ( Max )	5.4 nF / 100m
Insulation Material	HDPE	Working Capacitance ( Max )	10000MΩ / KM
Insulation Diameter	0.98 + / - 0.01mm	Transmission Velocity	65%
Jacket Material	PE + PVC	Operating Temperation	- 40 °C - 75 °C
Application	1.Computer network cabling project 2.Broadband network communication 3.Digital ISDN and ATM 155Mbps network 4.Ethernet network 5.Audio and data transmission

Frequency (MHz)	Impedance (Ohm)	Return Loss (≥dB)	Attenuation (≤dB/100m)	NEXT (≥dB/100m)	ELFEXT (≥dB/100m)	PS-NEXT (≥dB/100m)	PS-ELFEXT (≥dB/100m)	NVP
Frequency (MHz)	Impedance (Ohm)	Return Loss (≥dB)	Attenuation (≤dB/100m)	NEXT (≥dB/100m)	ELFEXT (≥dB/100m)	PS-NEXT (≥dB/100m)	PS-ELFEXT (≥dB/100m)	NVP
1	100±15	20.0	2.0	65.3	63.8	62.3	60.8	68%
4		23.0	4.1	56.3	51.7	53.3	48.7
10		25.0	6.5	50.3	43.8	47.3	40.8
16		25.0	8.2	47.3	39.7	44.2	36.7
20		25.0	9.3	48.5	37.7	42.8	34.7
31.25		23.6	11.6	42.9	33.9	39.9	30.9
62.5		21.5	17.0	38.4	27.8	35.4	24.8
100		20.0	22.0	35.3	23.8	32.3	20.8
* 155	100 ± 18	18.8	28.1	32.4	20.2	29.4	17.2
* 200	100 ± 18	18.0	32.4	30.8	18	27.8	15
* 310	100 ± 22	16.7	41.8	27.9	14.2	24.9	11.2
* 350	100 ± 22	16.3	44.9	27.1	13.1	24.1	10.1

Packaging details:

1. Inner Packing: 305 Meters / Roll / Easy Pull Box

2. Outer Packing: 2 Boxes / Carton

3. Other Packing: as Customer's Request

Delivery time:

As for one 40'HQ container, we can finish them 7 - 15 days after receiving the deposit and we usually complete the order within 7 -10 days. It also depends on the items and the order quantities.

Payment terms:

1) L/C at sight

2)T/T: 30% deposit by T/T, 70% balance by T/T before shipment

3)Western Union: 30% deposit, 70% balance before shipment

Dual Layer Jacket Cat6 LAN Cable Outdoor FTP Al Foil Shielded PVC PE Material
