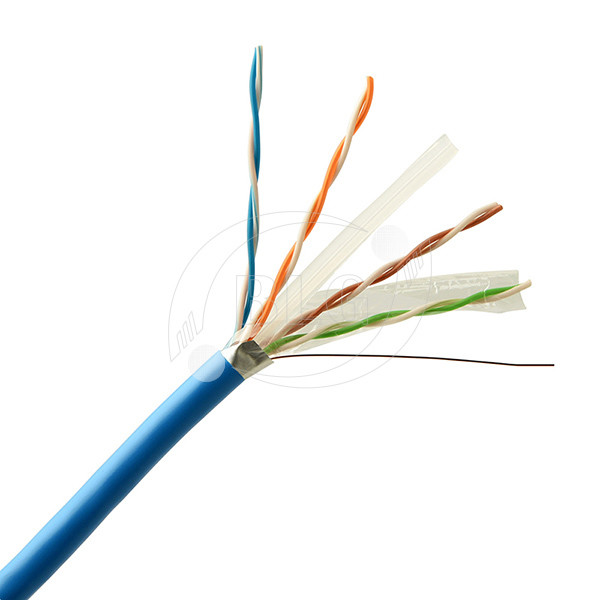

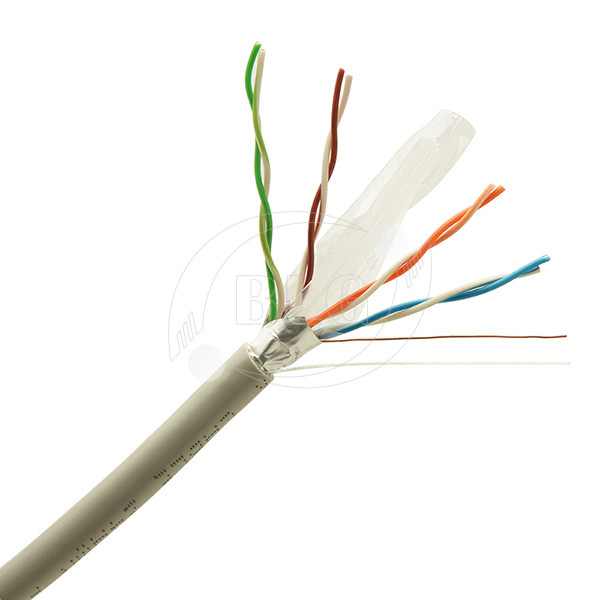

FTP Shielded Cat6 LAN Cable Network Wire 0.50mm 0.57mm Conductor
High performance ANSI / TIA / EIA 568C.2 compliance Category 6 FTP cables for mission critical LAN applications or Structured Cabling Systems at affordable prices.
SPECIFICATION of FTP Cat6 Cable
1) CONDUCTOR
- Raw material of the conductor: CU / CCA
- Conductor Dia.: 0.575 ± 0.003mm (23AWG)
2) INSULATION
- Raw material of the conductor: HDPE
- Quantity:4 twisted pairs
Blue/white-blue; Green/white-green;
Orange/white-green; Brown/white-brown;
- Insulation Dia. : 1.024±0.005mm
- Average thickness: 0.02245 mm
- Minimum point thickness: 0.2220mm
3) CENTER CROSS Separator
4) PET
5) DRAIN WIRE: O.D. 0.4mm CCA / CCS
6) OVERALL SCREEN: Aluminum foil
7) RIP CORD
8) SHEATH
- Sheath material: PVC
- Nominal Dia.: 6.80 ± 0.2mm
- Average thickness: 0.55mm
- Minimum point thickness: 0.5mm
Industry Standards:
Rated Temperature: 60°C, 75°C, 90°C
RoHS Complied PVC or PE or LSZH Jacket
Complies to ANSI / TIA-568-C.2, ISO / IEC 11801
Installation Temperature: -30°C ~ +50°C
Minimum Bending Radius: 8D
| Product Electrical Characteristics: |
| Impedance | 100+/-15 ohms |
| Mutual Capacitance, Max. nf/1000ft | 17.1 |
| Conductor Resistance, max. Ohms/1000ft | ≤73 Ω |
| D C Resistance Unbalance of a pair | 5% max |
| Capacitance Unbalance(Pair to Ground) | 330pf/100m max |
| Propagation Delay Skew | 45ns/100m |
| Normal Velocity of Propagation | 66% |
| |
| |
| |
| Frequency | RL | Attenuation | NEXT | PS NEXT | FEXT | ELFEXT | SELFEXT | SRL |
| MHZ | dB | dB | ≥dB | dB | dB | ≥dB | ≤dB | ≥dB |
| 1 | 20 | 1.8 | 74.3 | 72.3 | 62.3 | 68 | 65 | 30 |
| 4 | 23 | 3.7 | 65.3 | 63.3 | 53.3 | 56 | 53 | 30 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 48.8 | 49.9 | 46.9 | 30 |
| 10 | 25 | 5.9 | 59.3 | 57.3 | 47.3 | 48 | 45 | 30 |
| 16 | 25 | 7.5 | 56.2 | 54.2 | 44.3 | 43.9 | 40.9 | 30 |
| 20 | 25 | 8.4 | 54.8 | 52.8 | 42.8 | 42 | 39 | 30 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 41.3 | 40 | 37 | 29 |
| 31.25 | 23.6 | 10.6 | 51.9 | 49.9 | 39.9 | 38.1 | 35.1 | 28.1 |
| 62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 35.4 | 32.1 | 29.1 | 25.1 |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 32.3 | 28 | 25 | 23 |
| 200 | 18 | 29 | 39.8 | 37.8 | 27.8 | 22 | 19 | 20 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 26.3 | 20 | 17 | 19 |
Packaging details:
- Inner Packing: 305 meters/roll/box, 2 boxes/carton
- Outer Packing: 2 boxes/carton
- Other Packing: as customer's request
Delivery time:
- As for one 4'HQ container, we can finish them 10-15 days after receiving the deposit and we usually complete
- the order within 10-15days. It also depends on the items and the order quantities.
Payment terms:
- L/C at sight
- T/T: 30% deposit by T/T, 70% balance by T/T before shipment
- Western Union: 30% deposit, 70% balance before shipment
