23AWG Cat6 UTP Network Cable 4 pairs Copper 1000ft Per Roll 0.58mm Conductor

Name: 23AWG Cat6 UTP Network Cable 4 pairs Copper 1000ft Per Roll 058mm Conductor
Brand: BLG/OEM
Price: 1 USD

China 23AWG Cat6 UTP Network Cable 4 pairs Copper 1000ft Per Roll 0.58mm Conductor wholesale

Brand Name : BLG/OEM

Model Number : UTP Cat6Network Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 100 rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

Packaging Details : 305M / Reel, 2 Boxes / Carton

Condutor Do. : 0.58mm

Material : 4 pairs Copper

Jacket : PVC/LOSH

Color : Grey/black/green/Blue, etc.

Length : 305m/1000ft per roll

Insultion Material : HDPE/PE

Contact Now

Indoor cat6 UTP Network Cable 1000ft Per Roll 23AWG 0.58mm Conductor

Specification:

1. Model:Indoor Cat6 UTP Network Cable
2. Conductor Material:Copper/CCA

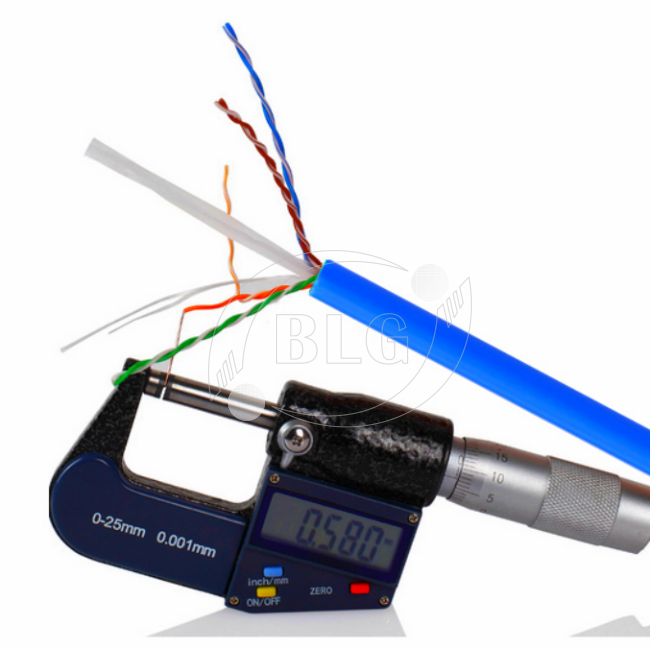

3. Conductor Dimension: 23AWG/0.58mm (24AWG/26AWG/28AWG optional)
4. Insulation thickness:0.2mm
5. The thickness of Jacket:0.55mm
6. Outer Diameter:5.6mm/5mm
7. Insulation:PE/HDPE
8. Number of Twisted Pair:8 Core
9. Shielding:UTP
10. Ripcord yes/no:Yes
11. Jacket:PVC (Polyvinyl-Chloride) or LSZH (Low Smoke Zero Halogen)
12. Color:White/gray/blue/black or as your request

Bare solid copper conductor, CCA and CCS conductor optional
ROHS complied PVC, PE or LSOH jacket
Complies to TIA/EIA-568B&ISO/IEC 11801
Remark: 250MHz 550MHz

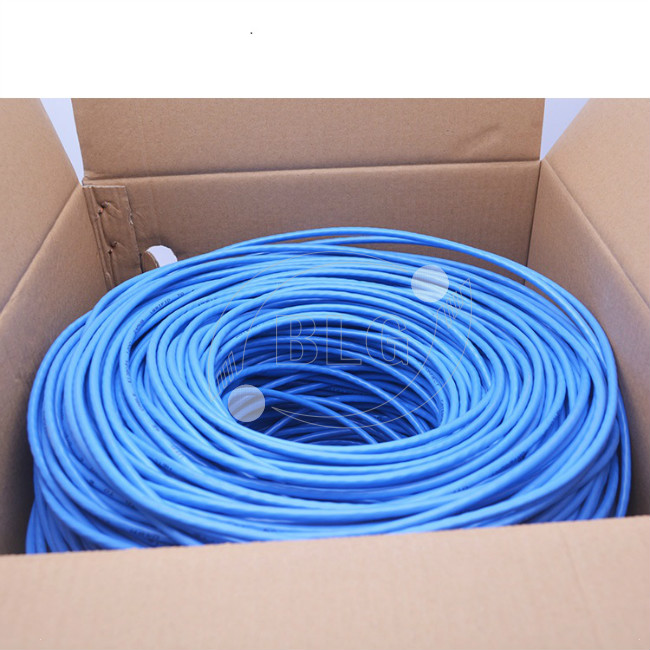

Package: 305meters/roll

Application

1. Computer network cabling project
2. Broadband network communication
3. Digital ISDN and ATM 155Mbps network
4. Ethernet network
5. Audio and data transmission

Engineering data

DC loop resistance	Max.	134Ω/km
Resistance unbalance	Max.	2%
Propagation delay		≤570 ns/100m
Delay skew	Max.	≤45 ns/100m
Impedance	1-250MHz	100±15Ω
Norminal velocity of propagation		67%
Capacitance	Norminal	49 pF/km
Capacitance unbalance	Max.	300 pF/km

23AWG Cat6 UTP Network Cable 4 pairs Copper 1000ft Per Roll 0.58mm Conductor
