8 Number Conductor Cable Ethernet Cat 6 305m / Roll 0.2mm Insulation With Blue Color

Name: 8 Number Conductor Cable Ethernet Cat 6 305m Roll 02mm Insulation With Blue Color
Brand: BLG/OEM
Price: 1 USD

China 8 Number Conductor Cable Ethernet Cat 6 305m / Roll 0.2mm Insulation With Blue Color wholesale

Brand Name : BLG/OEM

Model Number : Cat6 LAN Cable

Certification : CE/ROHS/ISO

Place of Origin : China

MOQ : 100 rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Item Name : UTP Cat6

Material : 4 pairs Copper

Jacket : PVC/LOSH

Color : Blue, optional

Length : 305m per roll

Shielded : UTP

Contact Now

Ethernet Cable Cat 6 Copper 8 Number Conductor LAN Cable 305m / roll PVC Jacket Blue

Technical Data Sheet of Network Cable
Item	Specifications
1) Technical Information
Mode	UTP Cat6 Lan Cable
Conductor Size	23AWG/24AWG(0.57~0.5mm)
Number of Connector	4P/8cores
Impedance	100±15%Ω at 1~100MHz
Stretching Resistance	250N (max)
Insulation Resistance	10000MΩ.km
DC Resistance Imbalance	2.50%
Insulation Thickness	0.2mm
2) Material Information
Insulation Materials	PE & HDPE
Conductor Materials	BC/CCA/CCS/CCAW/CCAG (Customizable)
Appearance	Grey/Blue/Red/Yellow/White (Customizable)
Shield	Unshielded Twisted Pairs
Jacket	PVC ROHS PVC LSZH
3) Environmental Information
Working Capacitance(Max.)	5.4nF/100m
Operating Temperature	-40°C ~ +70°C
Storing temperature	-30°C ~ +85°C
4) Application
Telecommunication / Computer networks / Instrumentation

Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.

DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.

Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B,CE
Certificates ISO9001, ROHS.

Applications
10Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
1000Base-TX
10Gbase-T

8 Number Conductor Cable Ethernet Cat 6 305m / Roll 0.2mm Insulation With Blue Color

Product Tags:

outdoor cat6 cable

cat6 internet cable

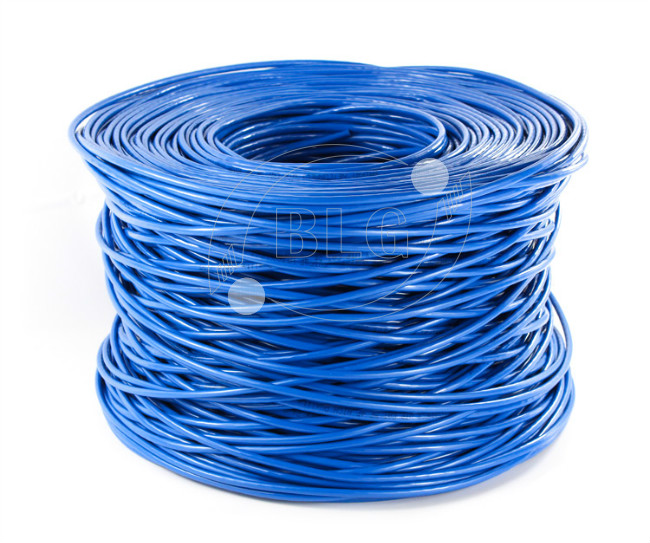

8 Number Conductor Cable Ethernet Cat 6 305m / Roll 0.2mm Insulation With Blue Color Images
