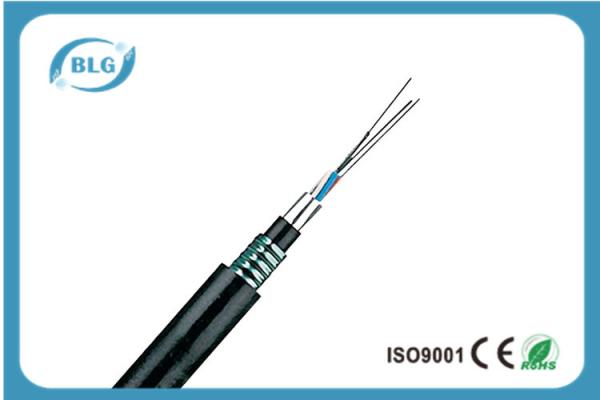

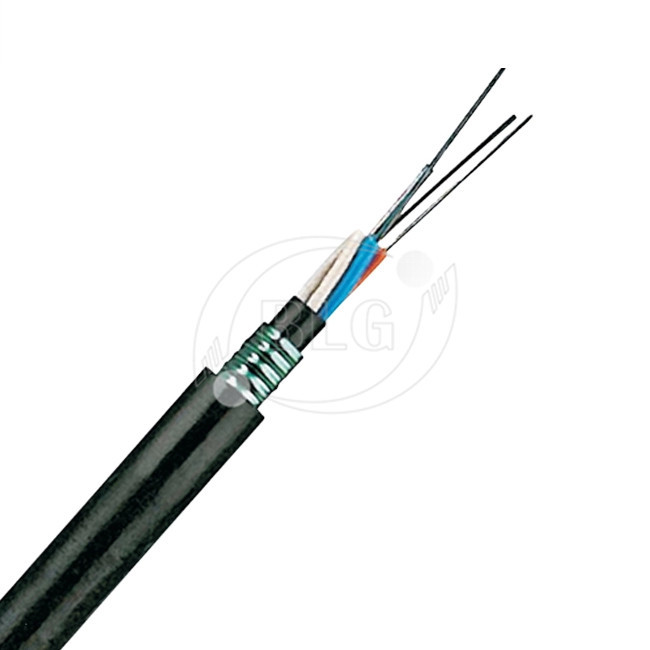

Single Mode 24 Cores Optical Fiber Cable GYTA Outdoor
Indoor Fiber Optic Cable
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are
designed to provide high fiber counts with the flexibility and versatility required for
today's most demanding installations, including duct and underground conduit.

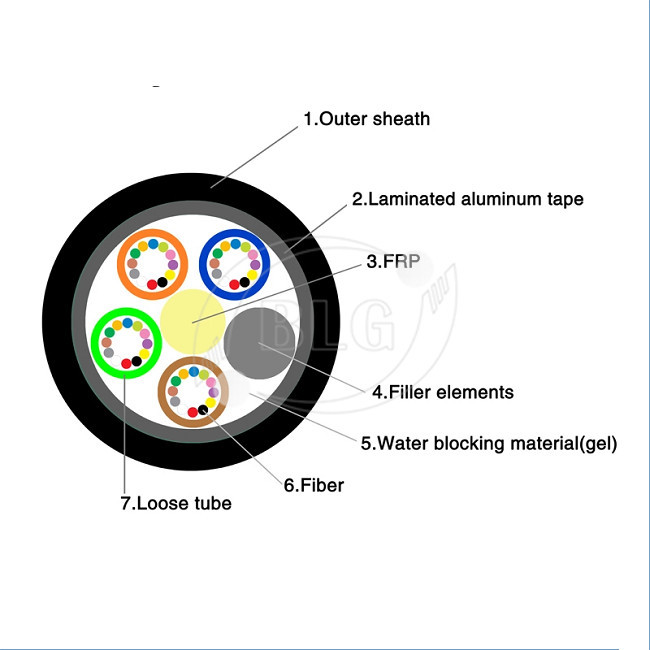

1. Product Construction
Fiber: 2-288 fiber
Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP) or steel wire.
Armor: Aluminum Tape Armor
Outer Jacket: Black UV Polyethylene(PE)
2. Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.
3. Application
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit.
4. Fiber Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
| Attenuation (+20X) | 850nm | | | <3.0 dB/km | <3.3 dB/km |
| 1300nm | | | <1.0 dB/km | <1.0 dB/km |
| 1310nm | <0.36 dB/km | <0.40 dB/km | | |
| 1550nm | <0.22 dB/km | <0.23 dB/km | | |
| Bandwidth | 850nm | | | >500 MHz-km | >200 MHz-km |
| 1300nm | | | >500 MHz-km | >500 MHz-km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength cc | <1260nm | <1450 nm | | |
5. Structure and Technical Specifications
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber
Per Tube | Max No. of
(Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19.0 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300
|
