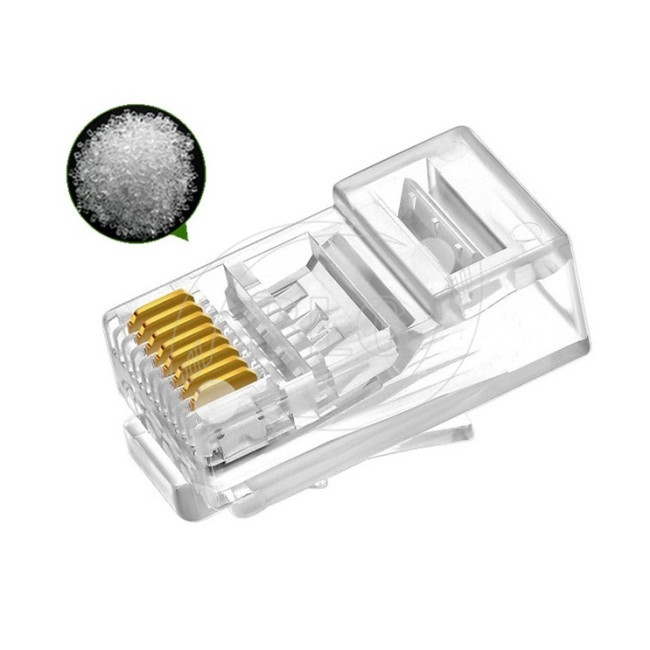

For Cat5e Network Cable Accessories UTP 8P8C RJ45 Male Connector Gold Plated Contact Blade
Inspection for Environmental Protection:
- Based on the performed tests on submitted sample,
- The test results are compliant with the limits of ROHS and REACH.
Electrical Test:
- 250V AC max, at 2A
- Dielectric withstanding 1000V / DC / min, < 0.5A
- Insulation Resistance: > 500M, 1000V / DC / min
- Contact Resistance: < 20m
Gold Plate Inspection:
- Per MIL - G - 4520C, Type II ( 99% pure gold minimum )
- Grade: C+
- Class 1
Mechanical:
- Cable - to - plug tensile strength - 20LBs ( 89N ) min
- Durability: 2000 mating cycles
Material & Finish:
- Housing Material: Polycarbonate ( PC. )
- Contact Blade: High Strength Copper Alloy; 100 Micro Inches Mickel Under Plated & Gold Selected.
Operating Temperature: - 40 °C ~ + 125 °C
Package:
- 1000PCS / Bag, 10 Bags / Carton
- 10PCS / Small Bag, 100 Bags / Carton
- Customized Package Available
FAQ:
Q: Is BLG a manufacturer or trading company?
A: BLG has its own factory, and also do some trading for the items we do not produce. We are competitive even for the trading items, as we have a strong sourcing team who concern about quality.
Q: What's the normal lead time?
A: For different items, we have different lead time, normally it is 15 - 20 days.
Q: Can We get samples for your products?
A: Yes, samples are available, but for some items, sample cost need to be charged, which can be returned after your formal order.
Q: What is your payment methods?
A: by T / T, sight L / C, Western Union, Paypal.
Q: Do you have the OEM service?
A: Yes, we can accept the OEM, any legal information can be printed on the product.
