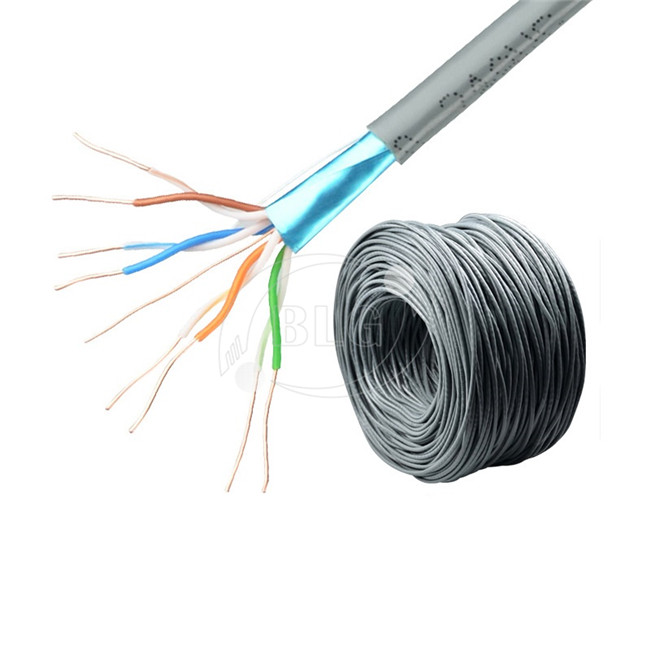

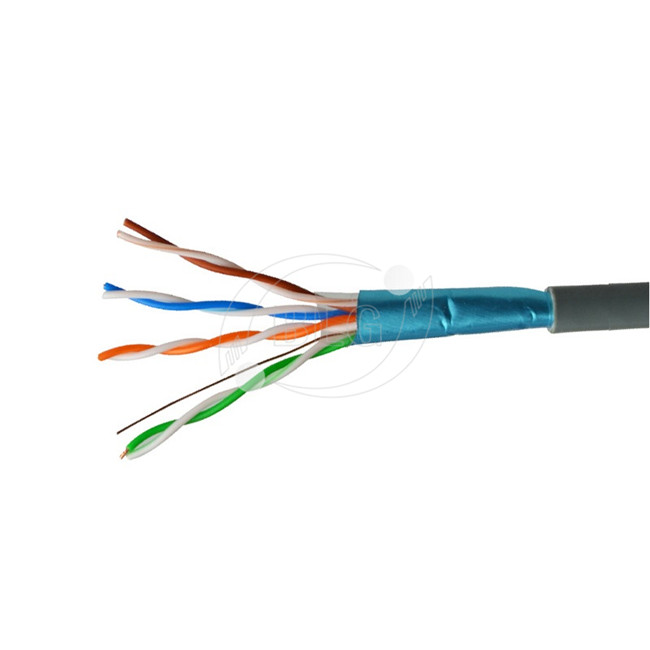

1000ft Shielded Category 5e Ethernet Cable , Cat5e Internet Cable Gray Solid 24AWG

Product Categories
SHENZHEN BLG DIGITAL NETWORK CO., LIMITED
Contact Now

1000ft Shielded Category 5e Ethernet Cable , Cat5e Internet Cable Gray Solid 24AWG

  • 1
  • 2
  • 3

Brand Name : OEM/BLG

Model Number : FTP Cat5 Network Wire

Certification : ISO/CE/ROSH

Place of Origin : China

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Conductor : CCA/BC/CU

Shielded : Al-foli

Insulation : HDPE

Drain wire : 0.4mm CCA

Wire Guage : 24AWG

Jacket : PVC

Contact Now

FTP Cat5 Bulk Network Wire 1000ft Shielded Cat5e Gray Solid 24AWG Cable

·

No. of Core 4pairs
Conductor Material Copper/ CCA
Construction 1/0.51 ± 0.002mm
Insulation Material HDPE
Filler None
Shield Material Mylar + Al-foil
Braiding None
Drain Wire Material None
Rip Cord Nylon
Jacket Material PVC
O.D. 5.3 ± 0.30mm
Color Gray, others optional
Marking Customized
Length 305m
Package Easy pull box
Temperature Rating 60℃
Operating Temperature -20℃ ~ 80℃
Voltage 30V

Electrical Performance:


Conductor Resistance		 Max. 9.38 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Capacitance Unbalance Max. 330pF/100m
Impedance 100+/-15 ohm
Spark Test 2000V
Velocity of Propagation 67%

APPLICATIONS:

For indoor use

Patch cables

Crossover Cables

Other network installations


TECHNICAL DATA

Made from professional grade materials

24AWG Cable, diameter of 5.3mm

Conductor diameter - 0.51mm

1000 FT Cat5e

1000ft Shielded Category 5e Ethernet Cable , Cat5e Internet Cable Gray Solid 24AWG

1000ft Shielded Category 5e Ethernet Cable , Cat5e Internet Cable Gray Solid 24AWG
