Solid UTP Cat6 Copper Cable 0.57mm Twisted Pair Cable for Gigabit Ethernet and Other Networks
Cat6 LAN Cable:
A Cat6 cable is similar to a Cat5 Ethernet cable - it consists of four pairs of twisted copper wire. However, it provides you with much more functionality. A Cat6 cable has a bandwidth capacity of 250 MHz, for example, and it offers you speeds of up to 10 Gbps. It’s also compatible with both Cat5 and Cat5E cables.
Cat6 LAN Cable Description:
Rated Temperature: 60°C, 75°C, 90°C
Bare Copper Conductor
RoHS / CE Complied PVC Jacket
Complies to ANSI / TIA - 568 - C. 2, ISO / IEC 11801
Installation Temperature: - 30 ~ + 50
Minimum Bending Radius: 4D
Cat6 LAN Cable Construction:
| Cat6 LAN Cable |
| Type of Cable | Cat6 U / UTP |
| Length Per Roll | 305M |
| Number of Pairs | 4P |
| Flame Rating | CMX, CM |
| Conductor | Material | Bare Copper |
| Diameter | 23AWG |
| Insulation | Material | HDPE |
| Diameter | 0.98mm ± 0.02mm |
| Color Code | Orange / White - Orange |
| Green / White - Green |
| Blue / White - Blue |
| Brown / White - Brown |
| Cross Seperator | Material | PE |
| Ripcord | Material | Nylon |
| Jacket | Material | PVC |
| Thickness | 0.55mm ± 0.03mm |
| External O.D. | 6.0 ± 0.2mm |
| Surface | Bright and Smooth |
| Colors | White, Grey, Blue, Yellow, Red, Green, Orange etc. |
Cat6 LAN Cable Application:
100 Base - TX
100 VG - AnyLAN
1000 Base - T ( Gigabit Ethernet )
ATM
Noisy Environments
Cat6 LAN Cable Package:
305M / Roll / Easy Pull Color Box, 2 Boxes / Carton
500M / Wooden Reel, 2 Reels / Carton
Customized Packages are Available
|
|

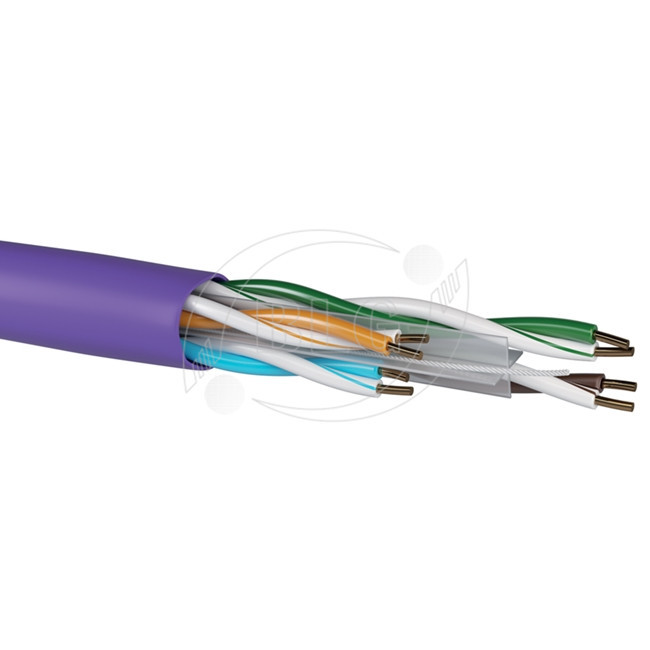

Solid UTP Cat6 Copper Cable 0.57mm Twisted Pair Cable for Gigabit Ethernet and Other Networks Images
|
